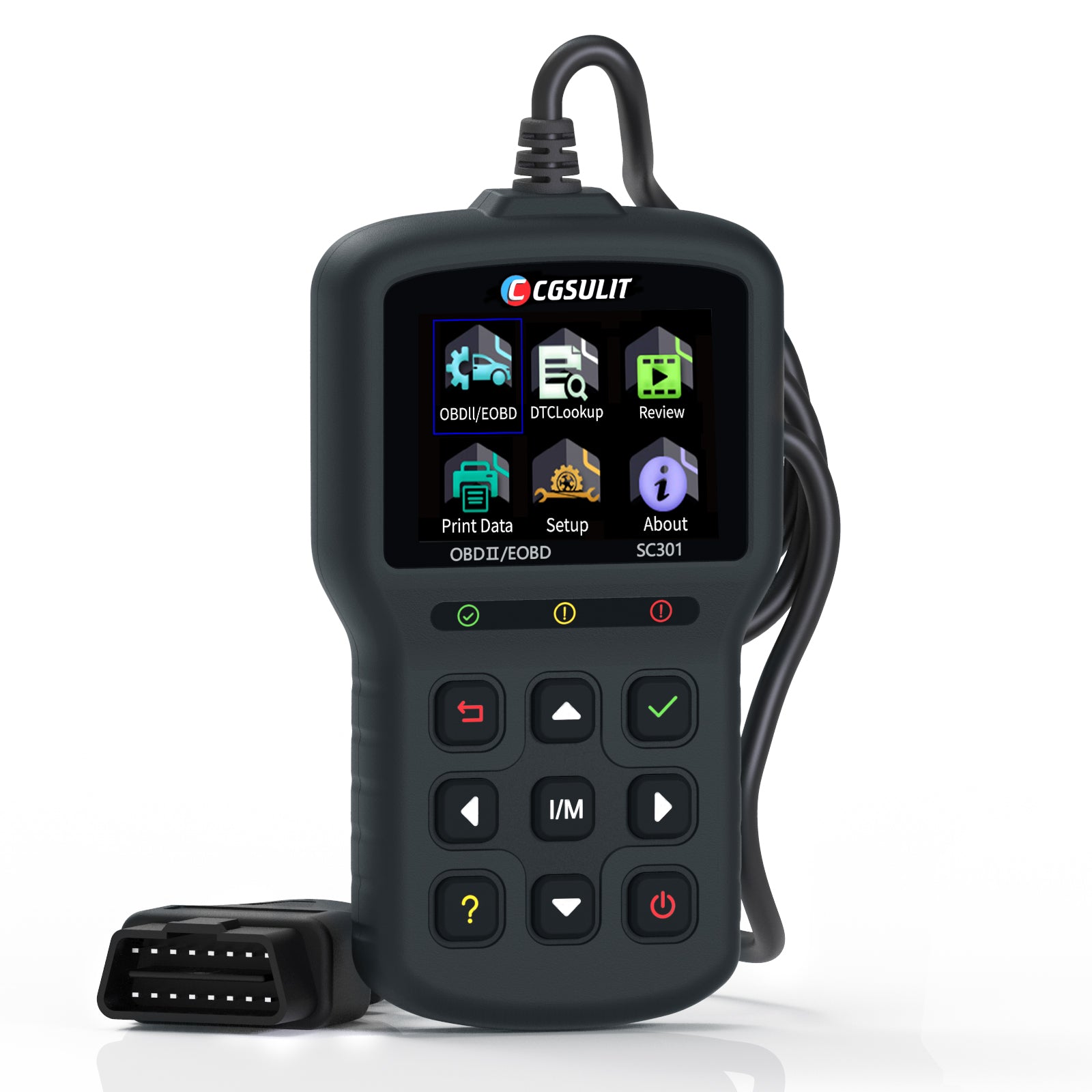

CGsulit SC301 CAN OBDII/EOBD Code Reader Engine Tool for I/M and DTCs readiness
|1. SC301 CAN OBDII EOBD Code reader is 2.8’ TFT color screen and hot keys for I/M readiness test, and reading/clearing DTCs make it excellent value for money.
2. SC301 CAN OBDII EOBD Code Reader offers useful information for entry-level pro and savvy DIYer that they can quickly and efficiently trouble shoot OBD2/EOBD problems on today’s vehicles
Display: 2.8"TFT color screen
Operating Temperature: 0 to 60 (32 to 140)
Storage Temperature: -20 to 70 (-4 to 158)
Power: 8 to 18 V provided via vehicle
Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898)
About this item:
Multifunctional Scanner ▶ The CGSULIT CS301 obd2 scanner as car diagnostic scan tool can quickly read and record live data, view freeze frame data, read/erase DTCs (engine fault codes), turn off the CEL (check engine light), perform O2 monitoring test, on-board monitor test etc.. Meet your requirements for car diagnosis.
Check Engine Light ▶ CS301 OBDII Scanner can quickly check your engine light and help you read the DTCs (engine fault codes). The built-in DTC library with 3000+ detailed definition, which will help you to understand the specific engine faults. After the repairing, you can also turn off the engine light quickly.
One Click I/M Readiness ▶ The CGSULIT OBDII code reader is specially designed for checking emissions readiness status for smog test. You can only through 1-click to know if your cars are ready for the smog test. The test result will be directly indicate via the Green-Yellow-Red light and the built in speaker.
Accurate Streams and Freeze Frame Data ▶ The automotive code reader can accurately catch the live data and read the freeze frame data. All data can be displayed via graph and text forms. You can read them on the device, or computer or even print them.
Widely Compatibility ▶ The CGSULIT car code reader fits all cars since 1996, EU-based and Asian-based cars since 2000, and is compatible with all the OBD2 protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM, CAN (Controller Area Network).
Free Upgrade and User friendly ▶ SC301 car scanner is necessary for the home use, and best gift for the Father’s Day or auto shop mechanics. They are life-long free upgrade online and will come with a 1-year warranty.
Why you choice to Get SC301 CAN OBDII/EOBD Code Reader?
1. SC301 works with all OBDII/EOBD compliant cars, light-duty trucks, SUVs, minivans sold worldwide
2. Reading/Erasing DTC and I/M readiness hot keys make it easy to use this tool right out of the package. They provide quick access to emissions readiness status, DTC information and erase function.
3. Red-Yellow-Green LEDs and build-in speaker indicate emissions monitor status. They can also help catch intermittent problems or confirm repairs during a drive cycle
4. Automatic VIN acquisition and decoding makes it much easier to read manufacturer specific codes and enhanced mode 6 data
5. SC301 does not only read and clear engine system faults, it also shows live vehicle sensor data in text and graph format and allows you to focus on any suspicious or symptom-specific data parameters.
6. It reads freeze frame data, which allows engine conditions such as fuel trim, engine coolant temp, etc., at the time the malfunction indicator lamp was set.
7. Multilingual menu options and code definitions - English, French, Spanish, Dutch, German, Russian, Hungarian, Portuguese, Italian and more.
8. With internet access, you will always have the latest bug fixes and newly added parameters and they are life-time free. Unique one-click update and automatic update reminder let you stay current with the latest technology
9. Clearly arranged keypad, menu-driven navigation, hotkeys and 2.8" TFT color screen together make it extremely easy to use.
Features and Benefits of SC301 Code Reader:
1. Supports multiple code requests: Generic, manufacturer specific and pending codes
2. Clears codes, turns off Check Engine Light (MIL) and resets monitors
3. Reads, records, graphs & playbacks live sensor data
4. Reads live O2 sensor/on-board monitor test data
5. Retrieves vehicle information (VIN, CID and CVN)
6. Enhanced Mode 6 functions
7. Thousands of code troubleshooters to help you determine your engine problems faster and easier
8. FREE software and firmware updates with included USB cable
9. Prints data through computer
10. Limited one (1) year warranty
Enhanced OBD II functions:
LED Notifications: Red-Yellow-Green LEDs and build-in speaker indicate the readiness status for smog check. This engine diagnostic tool can also help catch intermittent problems or confirm repairs during a drive cycle.
Data Log: The SC301 auto code reader records PIDs for later use to help you diagnose intermittent driving performance problems which can not be determined by any other methods.
DTC Help: Press "HELP" button with DTC guide for possible causes if codes show the small "?" icon.
VIN Retrival: Automatic VIN acquisition and decoding make it much easier to read manufacturer specific codes and enhanced mode 6 data.
Print Data: If you are unable to determine the problem, you can print out the diagnostic data and send the data to your mechanic for help.
I/M One-Key Fast Check
Quick state emissions readiness check and drive cycle verification.red-yellow-green leds and build-in speaker indicate emissions monitor status,they can also help catch intermittent problems or confirm repairs during a drive cycle.
CGSULIT SC301 CAN OBDII/EOBD Support Car List :
1. America Car List: (include Brazil)
Need standard obd2 , and release from 2001 years to now
Fit for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep
2. Europe Car List:
Need standard obd2 , and release from 2004 years to now
Fit for Alfa Romeo ,Fit for SAAB ,Fit for Acura ,Fit for Opel, Fit for Audi ,Fit for Seat ,Fit for Peugeot ,
Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu ,Fit for Land Rover
Fit for BMW ,Fit for Vauxhall ,Fit for Citroen, Fit for Volvo ,Fit for Fiat ,Fit for VW ,Fit for Ford ,Fit for Jaguar
3. Asia Car List: (include Australia)
Japanese car Need standard obd2 , and release from 2006 years to now
Fit for KIA ,Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi, Fit for Hyundai ,Fit for Dacia ,Fit for Lexus ,Fit for Mazda
Fit for Nissan ,Fit for Subaru ,Fit for Suzuki, Fit for Toyota
4. Chinese Car List
Chinese car Need standard obd2 , and release from 2011 years to now
Fit for BYD, Fit for Chery, Fit for Geely, Fit for Great Wall, Fit for Karry
for Ssangyong Actyon, Kyron, Rexton, from 2011-2017 years.
for Ssangyong Korando, from 2013-2017 years.
for Renualt cars from 2016-2018 years
Does not support for Renault / Dacia Logan , Clio.
Does not support for LADA, UAZ, VAZ
No Car OBD2 Scanner can work for all cars, If the device does not fit for your car, please try to test on another newly car.
CGSULIT SC301 Free Update Forever
Stpe1: Download the update tool from CGSULIT official website, connect the SC301 to PC and login in the CGSULIT program , the device will be automatcially detected.
Stpe2: You can go to setting , select the language of your software package.
Step3: Click online update, it will download the software, then click on Offline update, you may install the patch. Note:User -friendly life-long free online upgrade and printing via PC
